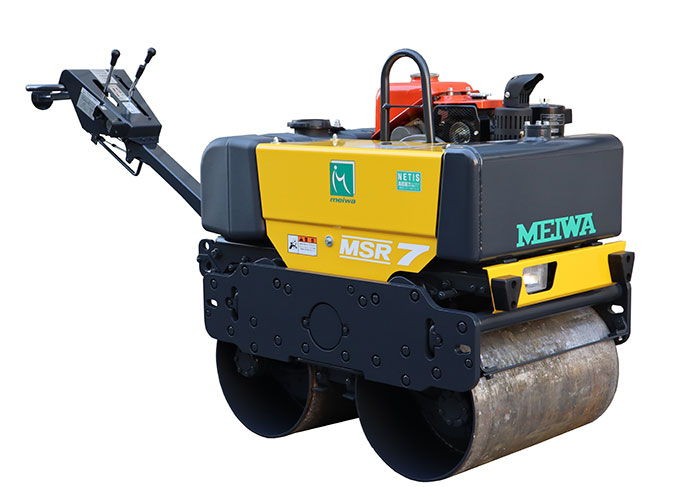

MSR7M
- Standard headlight
- Centrifugal clutch for smooth engine start and load reduction.
- Hydraulic subtank for simplify of maintenance and long life of hydraulic oil.
Also it works for long life of the hydraulic oil and
reducing
load to
the pump.
- New frame with high rigidity holds the top-class centrifugal force.
- The rigidity of frame reaches to a higher level by adding a shaft through the
center of the roll, tying up the right and left frame
tightly.
- Hour meter (option)
| Model | MSR7M | |
|---|---|---|
| Type | DOUBLE-DRUM | |
| Operating Weight | Kg | 737 |
| Shipping Weight | Kg | 695 |
| Overall Length | mm | 2410 |
| Overall Width | mm | 702 |
| Overall Height | mm | 1105 |
| Wheel Base | mm | 570 |
| Min. Road Clearance | mm | 170 |
| Drum Size | mm | φ406×650 |
| Speed (Forward/Reverse) | km/h | 0 - 3.5 |
| Compaction Width | mm | 650 |
| Vibration Frequency | Hz(vpm) | 55.0(3300) |
| Centrifugal Force | kN(kgf) | 20.0(1400) |
| Gradeability | ° | 25 |
| Water Tank Capacity | L | 42 |
| Engine | kW(PS) /min |
KUBOTA E300-E2-NB1 5.2(7.0) |
| Fuel | Diesel Fuel | |
| Fuel Tank Capacity | L | 4.8 |
| Hydrualic Oil Capacity | L | 10 |
| Starting System | Electric Starter |
Appearances and specifications are subject to change without notification.
