- Honda engine model
- Large size double air cleaner
- Large size engine cover
- Large size rubber buffer

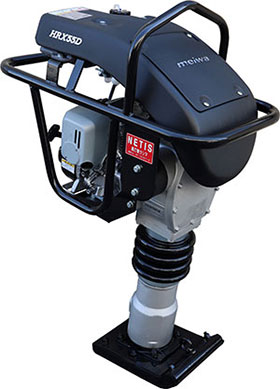

HRX55D

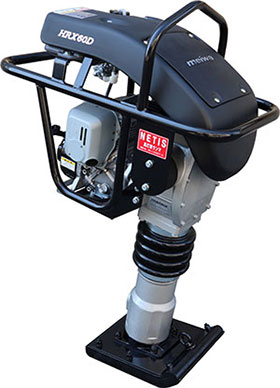

HRX60D

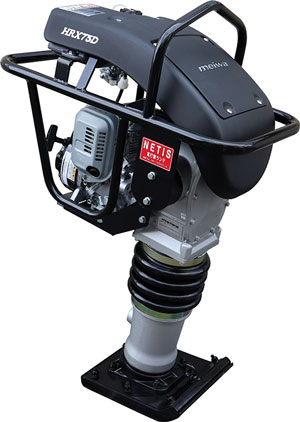

HRX75D

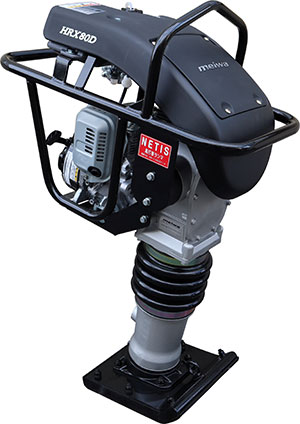

HRX80D
| Model | Weight (kg) |
Dimension
(mm) |
Plate Size (mm) |
Impaction Stroke (mm) |
Impaction Cycle (Hz) |
Engine Max. Output [kw/ps] |
Fuel Capacity (L) |
|---|---|---|---|---|---|---|---|
| HRX55D | 62 | L : 715 W : 380 H : 1015 |
L : 330 W : 230 |
40 - 60 | 10 - 10.8 | Honda GX100 [2.1/2.9] |
Gasoline 2.5 |
| HRX60D | 64 | L : 330 W : 270 |
|||||
| HRX75D | 75 | L : 715 W : 380 H : 1025 |
Honda GXR120 [2.7/3.7] |
||||
| HRX80D | 78 | L : 330 W : 300 |
Appearances and specifications are subject to change without notification.
- CCRobin engine model
- Large size double air cleaner
- Large size engine cover
- Large size rubber buffer
RTX55D
RTX60D
| Model | Weight (kg) |
Dimension
(mm) |
Plate Size (mm) |
Impaction Stroke (mm) |
Impaction Cycle (Hz) |
Engine Max. Output [kw/ps] |
Fuel Capacity (L) |
|---|---|---|---|---|---|---|---|
| RTX55D | 61 | L : 730 W : 385 H : 1010 |
L : 330 W : 230 |
40 - 60 | 10 - 10.8 | CCRobin EH092 [2.1/2.8] |
Gasoline 2.5 |
| RTX60D | 63 | L : 330 W : 270 |
Appearances and specifications are subject to change without notification.
- Standard model
- Honda engine model

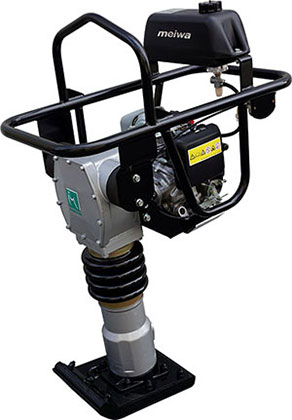

HR60
HR70

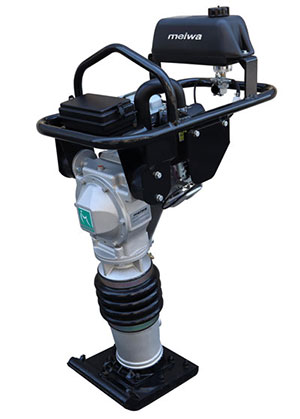

HR70D
| Model | Weight (kg) |
Dimension
(mm) |
Plate Size (mm) |
Impaction Stroke (mm) |
Impaction Cycle (Hz) |
Engine Max. Output [kw/ps] |
Fuel Capacity (L) |
|---|---|---|---|---|---|---|---|
| HR60 | 60 | L : 715 W : 380 H : 1060 |
L : 330 W : 230 |
40 - 60 | 10 - 10.8 | Honda GX100 [2.1/2.9] |
Gasoline 2.5 |
| HR70 | 70 | L : 660 W : 390 H : 1140 |
L : 330 W : 270 |
Honda GXR120 [2.7/3.7] |
|||
| HR70D | 72 | Honda GXR120 [2.7/3.7] |
Appearances and specifications are subject to change without notification.
RT50R
RT70R
RT70F
| Model | Weight (kg) |
Dimension
(mm) |
Plate Size (mm) |
Impaction Stroke (mm) |
Impaction Cycle (Hz) |
Engine Max. Output [kw/ps] |
Fuel Capacity (L) |
|---|---|---|---|---|---|---|---|
| RT50R | 55 | L : 690 W : 385 H : 1110 |
L : 330 W : 230 |
40 - 60 | 10 - 10.8 | CCRobin EH092 [2.1/2.8] |
Gasoline 2.5 |
| RT70R | 70 | L : 700 W : 430 H : 1110 |
L : 330 W : 270 |
CCRobin EH122D [2.6/3.5] |
|||
| RT70F | Honda GX120 [2.6/3.5] |
Appearances and specifications are subject to change without notification.
